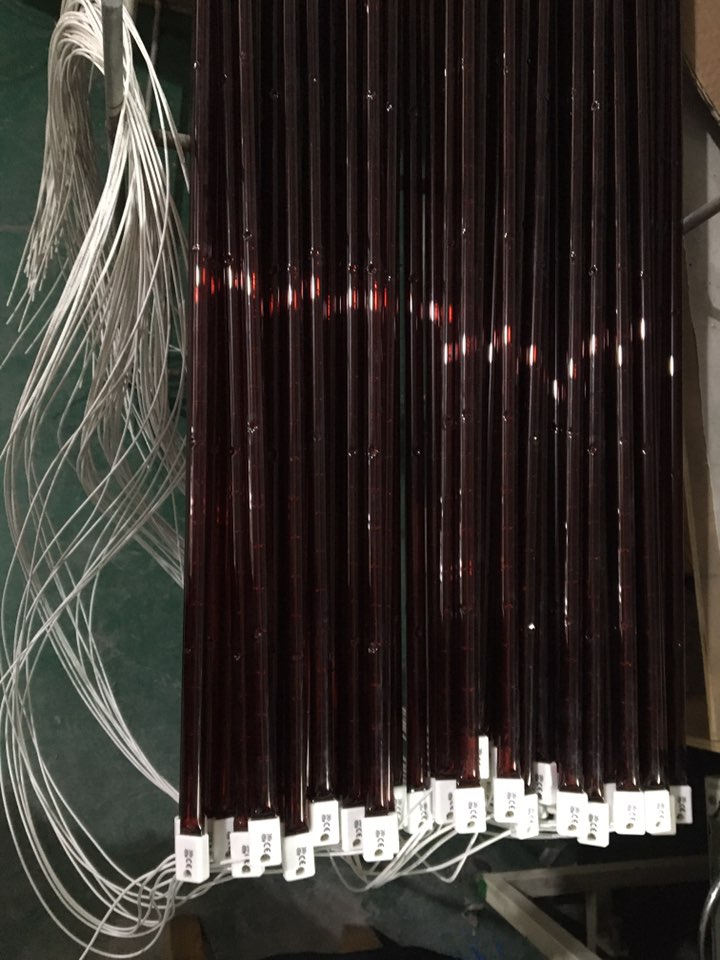

Let’s Talk About the 515mm 1600W Halogen Lamp
We designed this lamp for those moments when you need a massive amount of heat, and you need it now. At 1600W and 515mm, it’s built to pump out concentrated short-wave infrared radiation. If you’re running an industrial drying or curing tunnel, this is basically a plug-and-play replacement that just works.
The Heat Factor
Here’s the deal: because we’ve packed 1600W into a 515mm frame, you get a ton of heat per millimeter. We fill the tube with halogen gas so the tungsten filament can run scorching hot without burning itself out too quickly. The result? It’s fast. Really fast. The heat hits your target surface almost the second you flip the switch. No waiting around for things to warm up.
A Few Things to Watch Out For
We use high-purity quartz for the envelope. It’s the only way to handle that kind of thermal expansion without the glass just snapping. We also stuck with standard end-caps, so you won’t be hunting for weird adapters just to get it wired up. But a word of warning:Quartz is temperamental. Whatever you do, don’t touch the glass with your bare hands. The oils from your skin create these tiny hotspots that’ll kill the lamp way before its time. Grab some lint-free gloves, or give it a quick wipe with isopropyl alcohol before you slide it into the reflector. Trust me on this.
Getting the Most Out of It
You’ll usually see these in PET blowing machines or powder coating lines. The magic here is that the short-wave output actually sinks into the material instead of just heating up the air around it. To keep things running smooth, keep your reflectors polished. If those aluminum mirrors get pitted or oxidized, you’re wasting energy and risking an overheat. Plus, make sure your power supply is steady. A sudden voltage spike can snap a filament in a heartbeat. And if you’re running these non-stop, double-check your cooling fans. 1600W puts off a lot of ambient heat, and you don’t want your equipment cooking itself.
